Carbon steel pipe

1. For pipelines. Water, gas pipes, steam pipes, and oil and gas trunk lines. 2. Tubes for thermal equipment. Superheating pipes, high temperature and high-pressure boiler pipes for locomotive boilers. 3. For the machinery industry. Aviation structural tubes, automobile axle tubes, tractor structural tubes, etc.

Classification ：

Carbon steel pipe

+8618063567430

manager@sdtiancangsteel.com

E-mail

Related Products

Online Message

PRODUCT DETAILS

Keyword: Steel Plate

Item	Carbon Steel Pipe
Length	3-12M or as required
Outer diameter	10mm-426mm
Wall thickness	1-100mm
Standard	AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Technique	Hot rolled/cold rolled
Surface Treatment	Black/Peeling/Polishing/Machined
Thickness tolerance	Control with in the standard, OD:+/-1%, WT:+/-5%
Material	API5L , X42 , X52 , X60, X70 , X80 , A106GR.B , A53 , A179 , A214 , A192 , A283 , ST37 , ST42 , 4130 A106-A,A179-C,A214-C,A226,A315,A106-B,A178,A210，Q195,Q235,Q275,10#,15#，20#，GSTPG38 , STS38, STB30 , STS42 , STB42，STB35，ST33, ST37, ST35.8 ,ST42 , ST45-8 , ST52
Coatings	Standard export packing
Export packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

Carbon steel pipe is made of steel ingot or solid round steel by piercing and then hot rolling, cold rolling or cold drawing. Carbon steel pipe plays an important role in China's steel pipe industry. The main materials are q235, 20 #, 35 #, 45 # and 16mn. The main executive standards include national standards, American standards, Japanese standards, etc. The national standards include the standards of the Ministry of Chemical Industry, Sinopec pipe fittings standards, and power pipe fittings standards.
Use of carbon steel pipe:
1. Pipe for mechanical industry. Such as aviation structural pipe (round pipe, oval pipe, flat oval pipe), automotive semi axle pipe, axle pipe, automotive tractor structural pipe, tractor oil cooler pipe, agricultural machinery square pipe and rectangular pipe, transformer pipe and bearing pipe.
2. Pipes for petroleum geological drilling. Such as: oil drilling pipe, oil drill pipe (kelly and hexagonal drill pipe), drill stem, oil tubing, oil casing and various pipe joints, geological drilling pipe (core pipe, casing, active drill pipe, drill stem, collar and pin joint).
3. Pipes for chemical industry. Such as: petroleum cracking pipe, pipe for heat exchanger and pipeline of chemical equipment, stainless acid resistant pipe, high-pressure pipe for chemical fertilizer and pipe for conveying chemical medium.
4. Pipes for pipes. Such as: seamless pipe for water, gas pipe, steam pipe, oil transmission pipe, oil and gas trunk pipe. Faucet hose and sprinkler pipe for agricultural irrigation.
5. Pipes for thermal equipment. Such as boiling water pipes and superheated steam pipes for general boilers, superheated pipes, large smoke pipes, small smoke pipes, arch brick pipes and high temperature and high pressure boiler pipes for locomotive boilers.
6. For other departments. Such as: container pipe (high pressure gas cylinder pipe and general container pipe), instrument pipe, watch case pipe, injection needle and medical instrument pipe, etc.

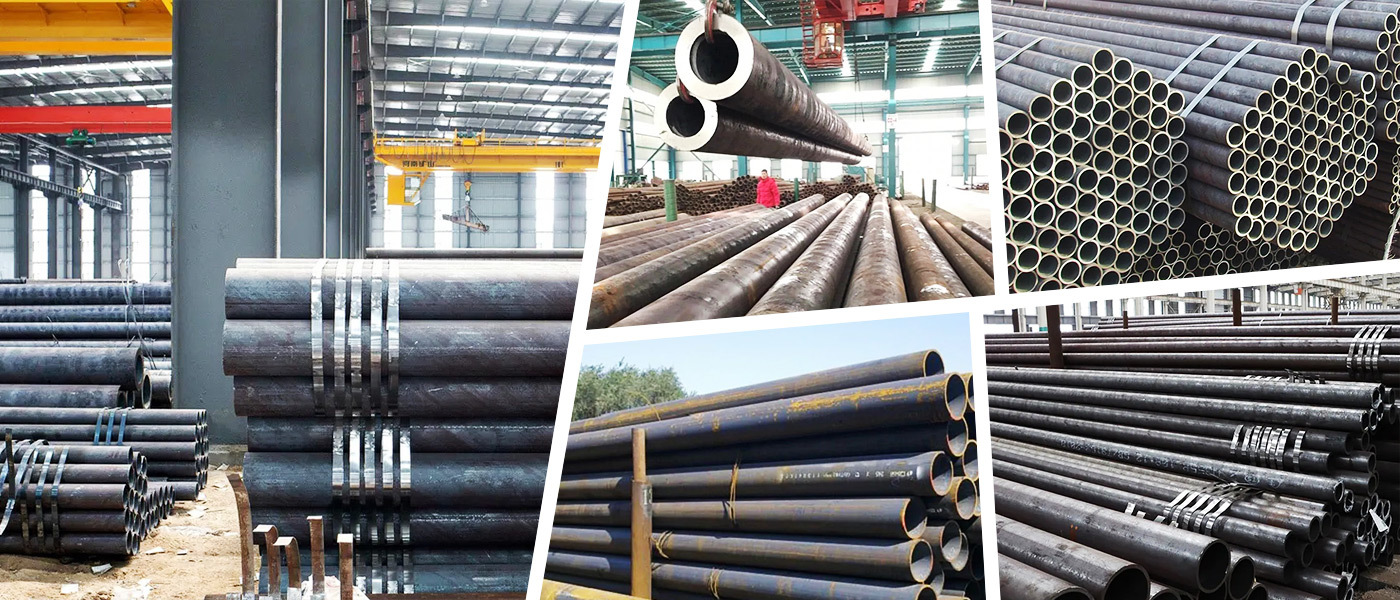

Products Display

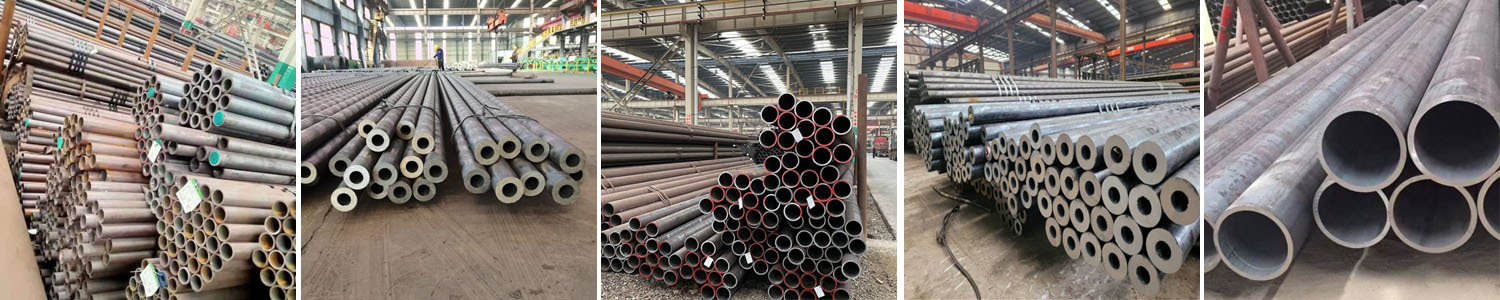

Warehouse Storage

The raw material of seamless carbon steel pipe is a round tube blank, which is cut by a cutting machine into a billet with a length of about 1 meter, and sent to a furnace for heating through a conveyor belt. The billets are fed into the furnace and heated at about 1200 degrees Celsius. The fuel is hydrogen or acetylene. Furnace temperature control is a critical issue. After the round tube blank is released from the furnace, it is pierced through a pressure punching machine. Generally, the more common punching machine is the conical roller punching machine. This kind of punching machine has high production efficiency, good product quality, large amount of perforation and diameter expansion, and can wear a variety of steel grades. After perforation, the round tube blank is successively cross-rolled, continuously rolled or extruded by three rolls.
1. Seamless steel pipe for structure (GBT8162-2008). Mainly used for general structure and mechanical structure. Its representative material (brand): carbon steel, 20, 45 steel; alloy steel Q345, 20Cr, 40Cr, 20CrMo, 30-35CrMo, 42CrMo, etc. 2. Seamless steel pipes for conveying fluids (GBT8163-2008). It is mainly used for conveying fluid pipelines in engineering and large-scale equipment. The representative material (grade) is 20, Q345, etc. 3. Seamless steel pipes for low and medium pressure boilers (GB3087-2008) are used to manufacture various structures of low and medium pressure boiler superheated steam pipes, boiling water pipes and superheated steam pipes, large smoke pipes, small smoke pipes and arch bricks for locomotive boilers Hot-rolled and cold-drawn (rolled) seamless steel pipes of high-quality carbon structural steel for pipes. The representative material is 10, 20 steel.

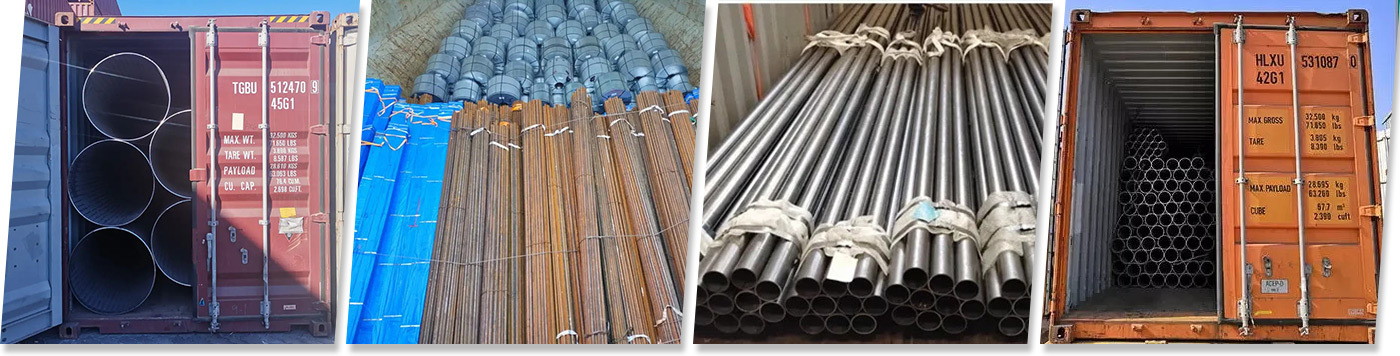

Packing and shipping

1. OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 219mm in bulk or according to custom opinion
3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.

Customer conversation

In The Future The Company Will as Always Adhering To The customer As The Buddha Are Proud Of The Service Business Philosophy Adhere To The "Create, Win Win" Spirit O enterprise Adherence To The Restraining. Provide The Most Valuable Industry Services. Is committed To Become China's Best Solution External Steel.

Application field

Products are mostly used in construction sites, aviation, shipbuilding, precision instruments, petrochemical and other industries.

FAQ

Q1:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q2:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q3:What are the shipping ports?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q4:How do you control quality ?

A:We provide Factory Test Report, also support Third Party Inspection.

Q5:How many countries you already exported ?

A:Exported to more than 50 countries mainly from Middle East, Russia, United States, Canada, Italy, Germany, Australia, Egypt, Chile, Mexico, Venezuela, Argentina, Kuwait, Saudi Arabia, UAE, Sri Lanka, Indonesia, Bangladesh, Turkey, India, etc.

Q6:How long does your delivery time take?

A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q7:Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q8:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
